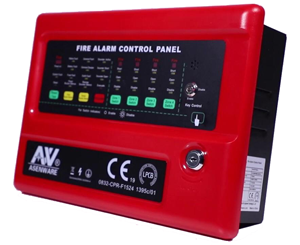

• Certified EN54-2:1997 +A1:2006, EN54- 4:1997 + A1:2002 + A2:2006

• LPCB Approved

• Using advance microprocessor technology with Large memory capacity

• Enhance user interface combining LCD Touch screen and keypad access

• Support real time visual algorithm

• Enhance false alarm prevention

Power Supply:

• Mains power supply: AC 220V±20%/50Hz or DC24V

• Backup power supply: DC24V maintenance-free battery BAT12V/5AH

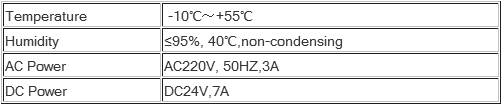

System Operating Environment

• Ambient temperature: -10℃～+55℃

• Ambient humidity: ≤95% (40℃±2℃, no condensation)

Capacity:

• Each loop card has 2 loops, with 324 addresses as alarm/control points of each loop, the capacity of each loop card is 324*2=648(addresses)

• Each wall mounted AW-AFP2100 panel can be installed maximum 3 loop cards, the maxium capacity is 648*3=1944(addresses). Over 1944 addresses, use the cabinet panel, the cabinet panel can be installed maxium 40 loop cards, the maximum capacity is 648*40=25920(addresses)

• Peer-to-peer with max.20 AW-AFP2100 panels, the maxium system capacity: 25920*20=518400(addresses)

Maximum simultaneous alarm of each host:

• Fire alarm: 500

• Trouble: 500

• Feedback: 500

• Strong Adaptability For Circumstance

• SMT Design, High Stability

• 40-60vdc Wide Voltage Operating Range

• Low Standby Current

• Power Supply Non-Polarized input

• Twin Led For 360 Visual

• Flashing Led Power Indicator

• Remote Led Indicator Output(2-Wire)

• Metal Shield. Anti-Electromagnetic Interference

• Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.

• The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.

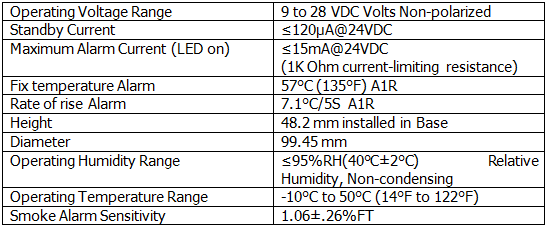

• Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector.

• Low Profile一1.8" high (with base)

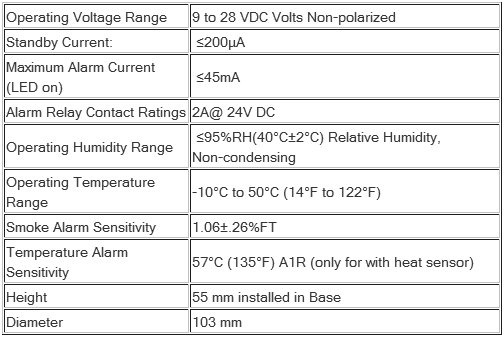

• 2 wire base compatibility, relay bases available

• Highly stable operation, RF/Transient protection

• Low standby current, 45NA at 24VDC

• Two built-in power/alarm LEDs

• Non-directional smoke chamber

• Vandal resistant security locking feature

• Removable smoke labyrinth for cleaning or replacement

• Low Profile一1.8" high (with base)

• 2 wire base compatibility, relay bases available

• Highly stable operation, RF/Transient protection

• Low standby current, 45NA at 24VDC

• Two built-in power/alarm LEDs

• Non-directional smoke chamber

• Vandal resistant security locking feature

• Removable smoke labyrinth for cleaning or replacement
