• 298AC with AC/DC Ph Tech Spec.

• High impact flame retardant plastic

• Battery lockout circuit

• Low voltage disconnect

• Completely self contained

• Maintenance-Free sealed batteries

• Natural beige color

• Test switch and led charge indicator

• Ceiling or wall mount

• Power:6 W

• Emergency Time:6V/4AH

• Portable or Wall Mount QTY:6pcs/ctn pcs/ctn

• Material:Plastic Case Packing

• Size:63*39*34.5cm G.W.:13kgs N.W.:11.7kgs

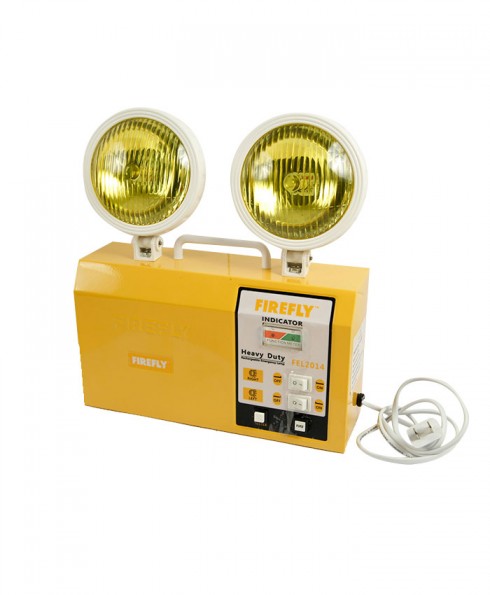

• Emergency Light

• Input:AC220V+/-10%,50Hz-60Hz

• Power:5W

• Material:Metal Case Lamp

• house:6V 5W incandescent lamp

• Emergency time:120 mins

• Emergency mode transfer time:1second Output:2*5W

• Charging time:12hours

• Environmental temp:-10C-50C

• Relative humidity:<90%

• Battery size:6V4AH Lead-Acid 6v 2500mAH Ni-Cd battery

• Battery life span:4years

• Standard:EN605598-1

•

• Test switch:To press the TEST SWITCH on the panel,unit will start to work.

• 1,5LED,0.3W

• 2,Charging voltage:110-220VAC

• 3,1.2V 300MAH Ni-Cd battery

• 4,Charge time: 12 hours

• 5,Discharge time>4Hours

• 6,material: AL housing and glass panel

• 7,Non-maitained/Maintained

• 8,ceiling mounted

• 9,Size: 34.8x14.4x2.4cm

• 10,20pcs/CTN/54x38.5x18.5cm

• 11,G.W/N.W:8/7KG

• Mode of Operation:Maintained

• Lamp:2X8W/T5 G5 Fluorescent tube

• Rated Supply Voltage:220V-240V/50-60HZ

• Battery:6V 4.5Ah Lead Acid Battery

• Full Change:Approx.24hours

• Duration:Approx.7hours

• IP Class:IP20

• Insulation:I

• Dimension:44x43.5x25cm/6pcs

• G.W.:16kgs

• N.W.:14.5kgs

• One Tube Works at Normal Mode,Another Tube

• Only Works at Emergency Mode

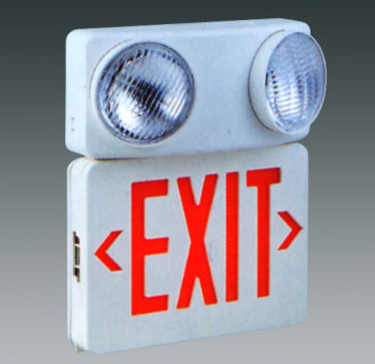

• 120/277 VAC Dual voltage operation.

• Low power consumption 3.8 watts at normal operation,15 watts at emergency operation.

• LED indicator light and push button test switch.

• Remote capability- may power additional remote heads (up to 6V /12W) with additional battery.

• LEDs mounted on print circuit board.(for Exit Sign)

• LED lamps are operating in normal (AC input) and emergency (DC input) modes.

• 2x6V 5W T5 wedge base lamp fro emergency mode.

• Lead-Calcium Battery (6V 5Ah)

• May use additional battery, when add remote light heads to the fixture. (Total 2X 6V 4.5Ah battery).

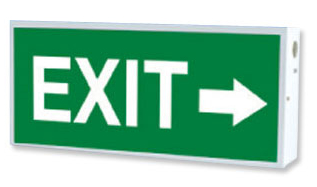

• 5x5000mcd LED

• 3.6V 600mAh Ni-cad Battery

• Charging voltage:110-220VAC

• 3.6V 500MAH Ni-Cd battery

• Charge time: 24 hours

• Discharge time: > 90 min

• material: plastic housing and 6mm acrylic panel

• Tree Ways (A,B or C) of installation

• ceiling mounted

• 37cmx30cmx27cm/10pcs carton

• 5900pcs/20" container
